LSV**-20
Cartridge Valve > Solenoid Cartridge Valve
LSV**-20 Cartridge type solenoid valve
This solenoid-operated, 2-way, poppet-type, normally closed, screw in hydraulic cartridge valve, with standard and manual override options is designed to function as a blocking or load holding valve in applications requiring low internal leakage.
When de-energized, the LSV**-20 acts as a one-way valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1.
When energized, the valve allows the flow path from port 2 to port 1. In this mode, flow from port 1 to port 2 is severely restricted. If this path is required, please see LSV**-22.
█ SYMBOL
█ MODEL SPECIFICATION
model
cavity
capacity
(LPM/GPM)
operating
pressure (Bar)
Proof Pressure
(Bar)
Internal leakage
User temperature
operation Voltage
LSV08-20
S08-2
23 / 6
210
260
0.15 (cc/min)
-40~120 °C
±15%
LSV08-20M
LSV10-20
S10-2
45 / 12
350
LSV10-20M
LSV12-20
S12-2
114 / 30
240
390
LSV12-20M
LSV16-20
S16-2
132 / 35
210
390
LSV16-20M

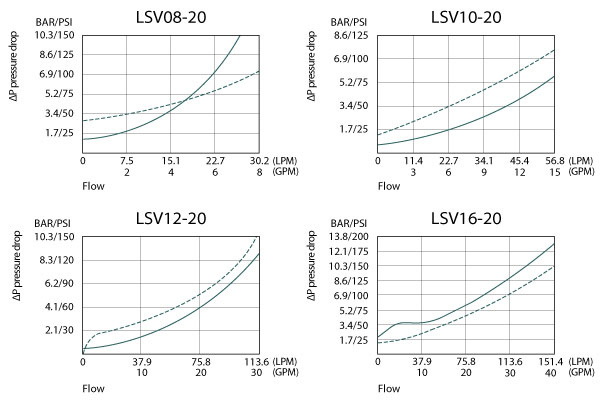

█ PERFORMANCE CURVES
█ MODEL CONFIGURATION
|
LSV |
08 |
- |
20 |
M |
- |
N |
- |
24 |
G |
|
① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
①: Cartridge type Solenoid Valve
②: Valve Size
08: 23 LPM / 6 GPM 12: 114 LPM / 30 GPM
10: 45 LPM / 12 GPM 16: 132 LPM / 35 GPM
③: Logic (see Symbol)
④: Additional Option
Blank: None M: Manual Override
⑤: Seal
N: NBR V: Viton
⑥:Voltage
12: 12 VDC 115: 110 VAC
24: 24 VDC 230: 230 VAC
⑦:Termination
G: DIN 43650
L: Dual Leads (280 mm)
W: Dual Leads with Weather Pack Connector.
R: Dual Leads with Deutsch Connector
Mating Connector: DT06-2S
