LSV**-22
Cartridge Valve > Solenoid Cartridge Valve
LSV**-22 Cartridge type solenoid valve
This solenoid-operated, 2-way, poppet-type, normally closed, screw in hydraulic cartridge valve, with standard and manual override options is designed to function as a blocking or load holding valve in applications requiring low internal leakage. When de-energized, the LSV12-22 acts as a check valve, allowing flow to pass from port 1 to port 2, while blocking flow in the reverse direction from port 2 to port 1. When energized, the poppet lifts allowing flow path from both port 1 to port 2 and port 2 to port1.
█ SYMBOL
█ MODEL SPECIFICATION
|
model |
cavity |
capacity (LPM/GPM) |
operating pressure (Bar) |
Proof Pressure (Bar) |
Internal leakage |
User temperature |
operation Voltage |
|
LSV08-22 |
S08-2 |
23 / 6 |
210 |
260 |
0.15 (cc/min) |
-40~122 °C |
±15% |
|
LSV08-22M |
|||||||
|
LSV10-22 |
S10-2 |
45 / 12 |
350 |
||||
|
LSV10-22M |
|||||||
|
LSV12-22 |
S12-2 |
114 / 30 |
240 |
390 |
|||
|
LSV12-22M |
|||||||
|
LSV16-22 |
S16-2 |
132 / 35 |
210 |
390 |
|||
|
LSV16-22M |

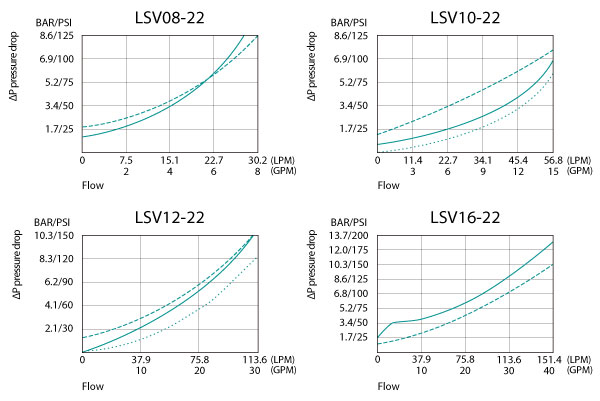

█ PERFORMANCE CURVES
█ MODEL CONFIGURATION
|
LSV |
08 |
- |
22 |
M |
- |
N |
- |
24 |
G |
|
① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
①: Cartridge type Solenoid Valve
②: Valve Size
08: 23 LPM / 6 GPM 12: 114 LPM / 30 GPM
10: 45 LPM / 12 GPM 16: 132 LPM / 35 GPM
③: Logic (see Symbol)
④: Additional Option
Blank: None M: Manual Override
⑤: Seal
N: NBR V: Viton
⑥:Voltage
12: 12 VDC 115: 110 VAC
24: 24 VDC 230: 230 VAC
⑦:Termination
G: DIN 43650
L: Dual Leads (280 mm)
W: Dual Leads with Weather Pack Connector.
R: Dual Leads with Deutsch Connector
Mating Connector: DT06-2S
