Sandwich type, Aluminum body
Pressure Switch > Micro Switch Sensor
MMB Sandwich type, Aluminum body
█ MODEL CONFIGURATION
|
MMB |
- |
2 |
P |
B |
P |
- |
250 |
- |
B |
|
① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
①: Series
②: Interface
2: ISO03, NG6, CETOP03
3: ISO05, NG10, CETOP05

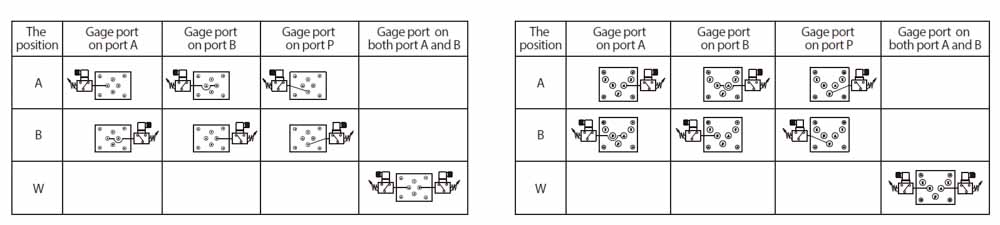

③: Gage Port
A: Connect to port A
B: Connect to port B
P: Connect to port P
W: Connect to port A & B
④: Position
A: Pressure switch on A side
B: Pressure switch on B side
W: Pressure switch on both side
⑤: Connector Orientation
P: Connector toward port P
T: Connector toward port T
⑥: Adjustment Range
|
Model |
Adjustment Range (bar) |
Standard Setting (bar) |
MMB-2 (A,B,P) |
MMB-2W |
MMB-3 (A,B,P) |
MMB-3W |
|
|
|
40 |
6-40 |
20 |
0.55 |
0.8 |
0.9 |
1.5 |
||
|
70 |
8-70 |
30 |
0.55 |
0.8 |
0.9 |
1.5 |
||
|
150 |
15-150 |
70 |
0.55 |
0.8 |
0.9 |
1.5 |
||
|
250 |
40-250 |
100 |
0.55 |
0.8 |
0.9 |
1.5 |
⑦: Indicator
A: With LED indicator
B: Without LED indicator

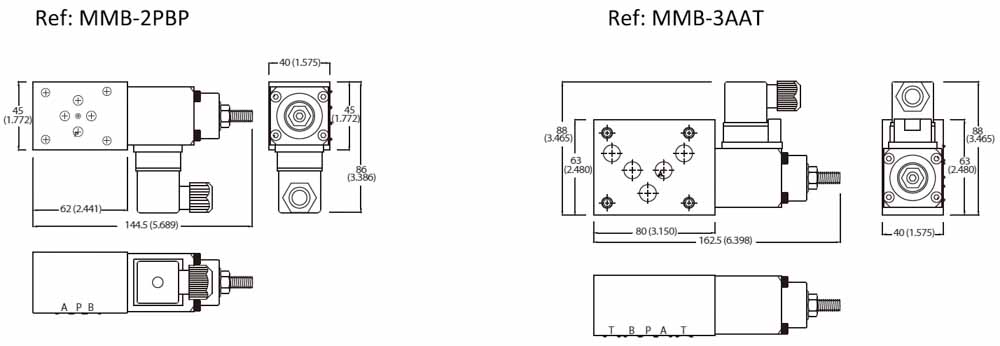

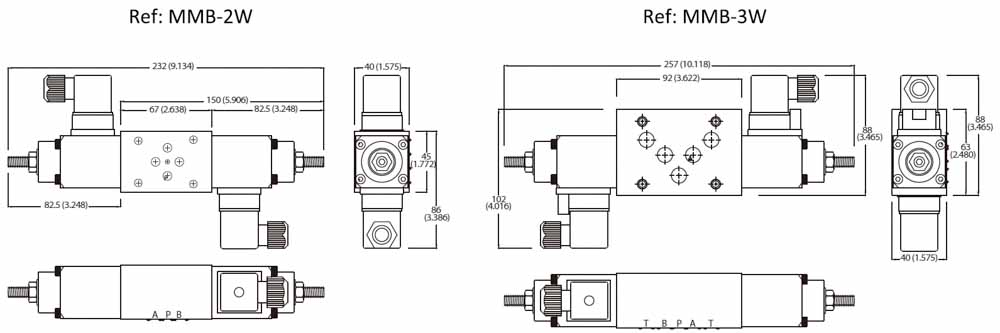

█ DIMENSIONAL DRAWING
█ PERFORMANCE CURVES

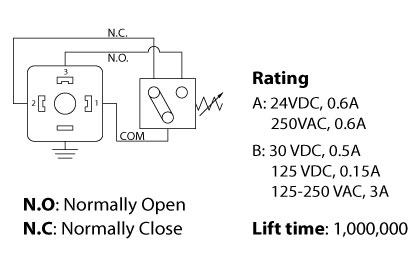

█ CONNECTING SCHEMATIC
