General Type With Hand Knob
Pressure Switch > Micro Switch Sensor
MSA General Type with Hand Knob
█ MODEL CONFIGURATION
|
MSA |
- |
40 |
- |
A |
- |
P |
|
① |
② |
③ |
④ |
①: Series
②: Adjustment Range
|
Model |
Adjustment Range (bar) |
Max. Operating Pressure (bar) |
Standard Setting (bar) |
Weight (kg) |
|
30 |
4-30 |
80 |
14 |
1.1 |
|
40 |
8-40 |
150 |
20 |
1.1 |
|
70 |
10-70 |
150 |
30 |
1.1 |
|
100 |
15-100 |
250 |
50 |
1.1 |
|
150 |
20-150 |
250 |
70 |
1.1 |
|
250 |
40-250 |
400 |
100 |
1.1 |
|
360 |
50-360 |
400 |
200 |
1.1 |
③: Indicator
A: with LED indicator
B: without LED indicator
④: Thread Port
P: 1/4” PT
N: 1/4”NPT
G: 1/4”PF

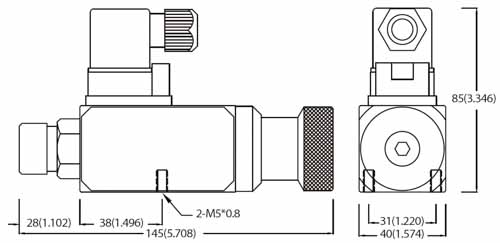

█ DIMENSIONAL DRAWING

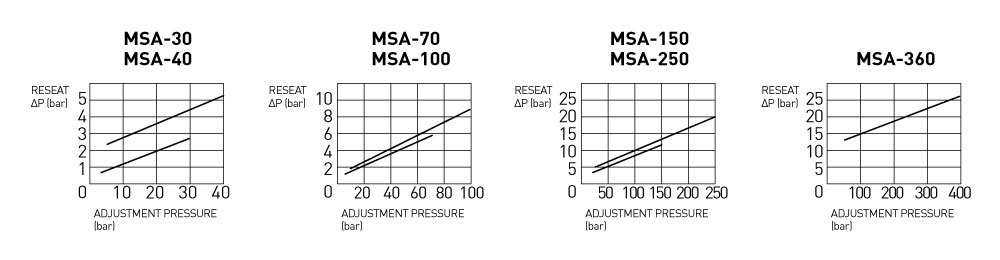

█ PERFORMANCE CURVES

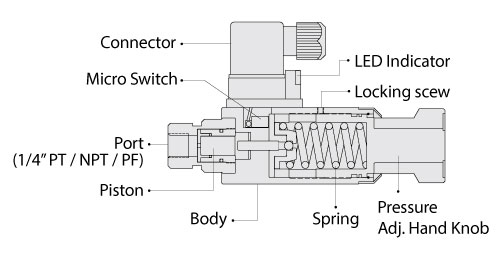

█ SCHEMATIC CROSS-SECTION
