SHG06
Hydraulic Filter > Manifold Filter
SHG06 Manifold plate mounting filter
LINS manifold plate mounting filter SHG06 is design for plate mounting on hydraulic manifold in a hydraulic or lubrication applications. SHG06 filter is used to protect an individual valves or the hydraulics systems, ensure the long hydraulic service life and reduced maintenance cost.
━Rating
Operating pressure: 280 bar (4000 psi)
Max. operating pressure: 350 bar (5000 psi)
Element ∆P: 210 bar
Flow Rate: 15-120 LPM
━Material of construction
Head: Steel
Housing: Steel
█ MODEL CONFIGURATION
|
SHG06 |
- |
3 |
- |
A10 |
- |
BE |
- |
N |
|
① |
② |
③ |
④ |
⑤ |
①: Series: Manifold plate mounting type
②: Length, H
|
Code |
Length, H (mm) |
Weight (kg) *without element |
|
1 |
186 |
4.5 |
|
2 |
214 |
4.9 |
|
3 |
313 |
5.9 |
③: Filtration Element
|
Code |
Flow rate (LPM) |
Filtration Rating |
||
|
Length 1 |
Length 2 |
Length 3 |
||
|
A03 |
15 |
20 |
35 |
Microfiber 3μm, β≧1000 |
|
A06 |
20 |
35 |
60 |
Microfiber 6μm, β≧1000 |
|
A10 |
35 |
50 |
70 |
Microfiber 10μm, β≧1000 |
|
A25 |
50 |
70 |
90 |
Microfiber 25μm, β≧1000 |
|
T40 |
75 |
90 |
120 |
Microfiber 40μm |
* This table display a part of filter elements.
If other filtration rating is required, please contact factory.
④: Indicator
0: None, with plug
BV: Visual indicator
BE: Electrical / visual indicator
⑤: Seal
N: NBR V: Viton

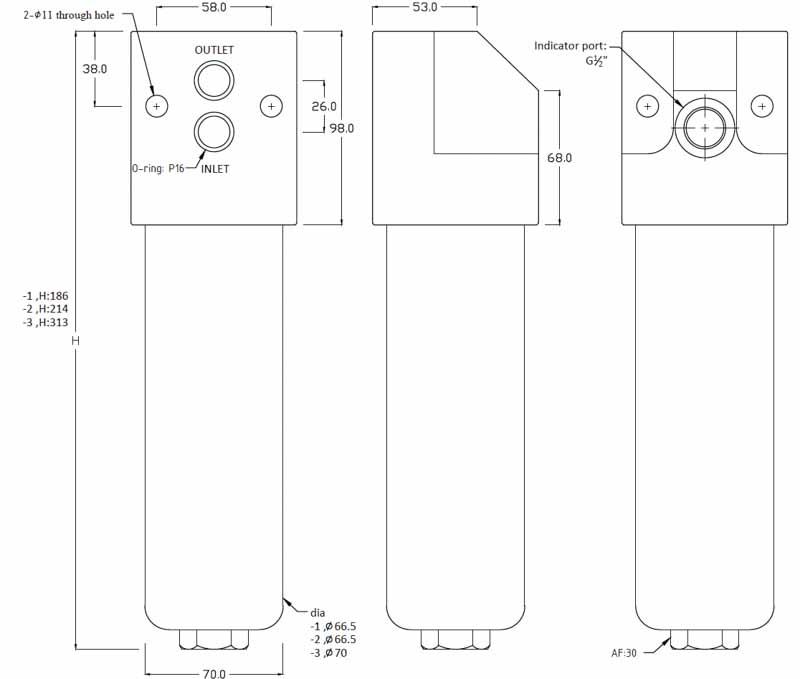

█ DIMENSIONAL DRAWING (mm)
█ SYMBOL
