SHM02
Hydraulic Filter > Manifold Filter
SHM02 Sandwich stack filter
LINS sandwich type filter SHM02 and SHM03 are design for sandwich plate mounting on hydraulic manifold in a hydraulic or lubrication applications. SHM02 filters are used to protect an individual valves or the hydraulics systems, ensure the long hydraulic service life and reduced maintenance cost.
━Rating
Operating pressure: 280 bar (4000 psi)
Max. operating pressure : 350 bar (5000 psi)
Element ∆P : 210 bar
Flow Rate : 3.5-15 LPM
━Material of construction
Head: Steel
Housing: Steel
█ MODEL CONFIGURATION
|
SHM02 |
- |
2 |
- |
A10 |
- |
AE |
- |
N |
|
① |
② |
③ |
④ |
⑤ |
①: Series: Sandwich filter
②: Length
|
Code |
Length (mm) |
Weight (kg) *without element |
|
2 |
212 |
2.6 |
③: Filtration Element
Code
Flow rate (LPM)
Filtration Rating
Length 1
A03
3.5
Microfiber 3μm, β≧1000
A06
5
Microfiber 6μm, β≧1000
A10
7
Microfiber 10μm, β≧1000
A25
10
Microfiber 25μm, β≧1000
T40
15
Microfiber 40μm
* This table display a part of filter elements.
If other filtration rating is required, please contact factory.
④: Indicator
0 : None, with plug
AV : Visual indicator
AE : Electrical/Visual indicator
Standard pressure setting at 3 or 4 bar, must be specified at time of order.
For indicator cavity and more details, see indicator page.
⑤: Seal
N: NBR V: Viton

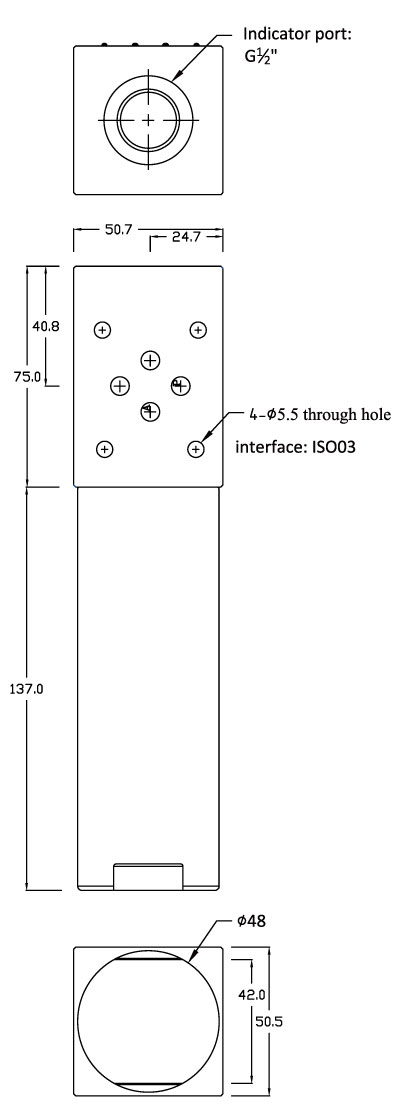

█ DIMENSIONAL DRAWING (mm)
█ SYMBOL
