SHM03
Hydraulic Filter > Manifold Filter
SHM03 Sandwich stack filter
LINS sandwich type filter SHM02 and SHM03 are design for sandwich plate mounting on hydraulic manifold in a hydraulic or lubrication applications. SHM03 filters are used to protect an individual valves or the hydraulics systems, ensure the long hydraulic service life and reduced maintenance cost.
━Rating
Operating pressure: 280 bar (4000 psi)
Max. operating pressure : 350 bar (5000 psi)
Element ∆P : 210 bar
Flow Rate : 20-90 LPM
━Material of construction
Head: Steel
Housing: Steel
█ MODEL CONFIGURATION
|
SHM03 |
- |
3 |
- |
A10 |
- |
AV |
- |
N |
|
① |
② |
③ |
④ |
⑤ |
①: Series: Sandwich filter
②: Length
|
Code |
Length (mm) |
Weight (kg) *without element |
|
3 |
287 |
6.5 |
③: Filtration Element
|
Code |
Flow rate (LPM) |
Filtration Rating |
|
Length |
||
|
A03 |
20 |
Microfiber 3μm, β≧1000 |
|
A06 |
35 |
Microfiber 6μm, β≧1000 |
|
A10 |
50 |
Microfiber 10μm, β≧1000 |
|
A25 |
70 |
Microfiber 25μm, β≧1000 |
|
T40 |
90 |
Microfiber 40μm |
* This table display a part of filter elements.
If other filtration rating is required, please contact factory.
④: Indicator
0 : None, with plug
AV : Visual indicator
AE : Electrical/Visual indicator
Standard pressure setting at 3 or 4 bar, must be specified at time of order.
For indicator cavity and more details, see indicator page.
⑤: Seal
N: NBR V: Viton

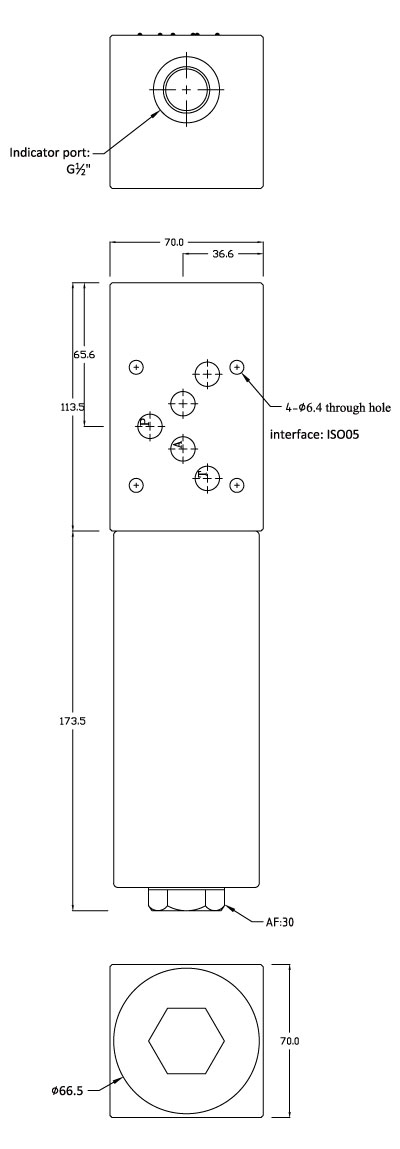

█ DIMENSIONAL DRAWING (mm)
█ SYMBOL
