High durability with hand knob. Subplate or general mounting.
Pressure Switch > Micro Switch Sensor
MSL
High durability with hand knob
Subplate or general mounting
█ MODEL CONFIGURATION
|
MSL |
- |
400 |
- |
B |
- |
P |
|
① |
② |
③ |
④ |
①: Series
②: Adjustment Range
|
Model |
Adjustment Range, bar |
Max. Operating Pressure, bar |
Standard Setting, bar |
Weight, kg |
|
50 |
8-50 |
200 |
25 |
1.0 |
|
100 |
15-100 |
300 |
45 |
1.0 |
|
200 |
30-200 |
300 |
100 |
1.0 |
|
280 |
40-280 |
350 |
110 |
1.0 |
|
400 |
50-400 |
400 |
180 |
1.0 |
③: Indicator
B: without LED indicator
④: Thread Port
P: 1/4” PT

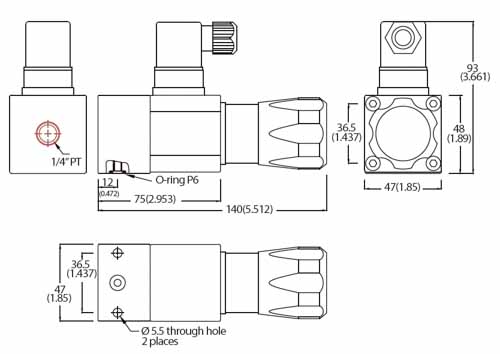

█ DIMENSIONAL DRAWING

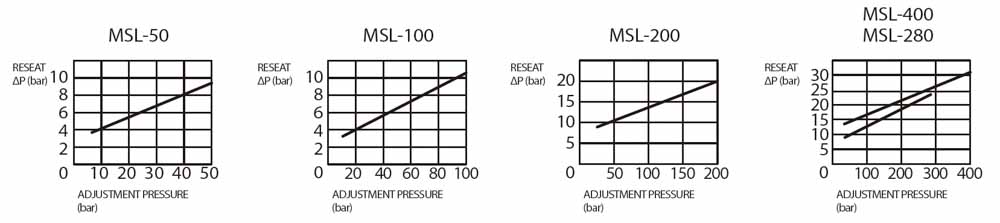

█ PERFORMANCE CURVES
█ SCHEMATIC CROSS-SECTION

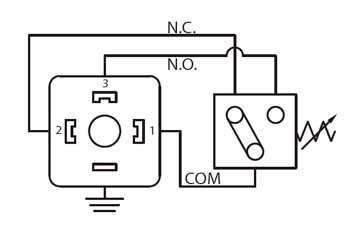

█ CONNECTING SCHEMATIC
Rating:
B: 30VDC, 0.5A
125-250, 3A
N.O.: Normally Open
N.C.: Normally Close
Lift time: 2,000,000
