Diaphragm Type (Pneumatic, Hydraulic, Water)
Pressure Switch > Micro Switch Sensor
MSP Diaphragm Type (Pneumatic, Hydraulic, Water)
█ MODEL CONFIGURATION
|
MSP |
- |
20 |
- |
B |
- |
P |
|
① |
② |
③ |
④ |
①: Series
②: Adjustment Range
|
Model |
Adjustment Range (bar) |
Max. Operating Pressure (bar) |
Standard Setting (bar) |
Weight (kg) |
|
2 |
0.5-2.0 |
80 |
1 |
0.3 |
|
8 |
1.5-8.0 |
80 |
4 |
0.3 |
|
20 |
2.0-20 |
80 |
5 |
0.3 |
③: Indicator
A: with LED indicator
B: without LED indicator
④: Thread Port
P: 1/4” PT
N: 1/4” NPT

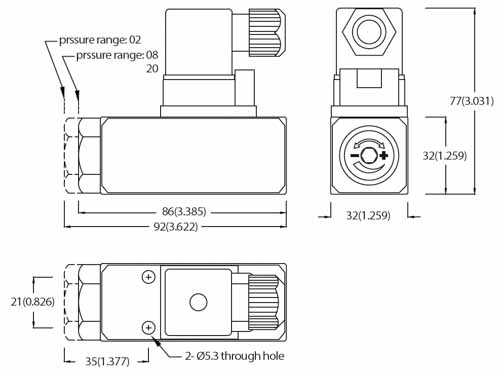

█ DIMENSIONAL DRAWING

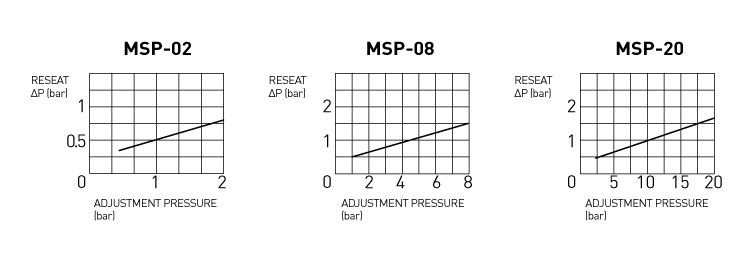

█ PERFORMANCE CURVES

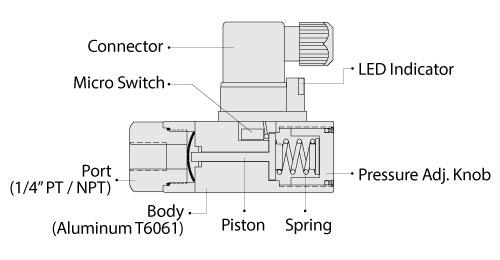

█ SCHEMATIC CROSS-SECTION
█ CONNECTING SCHEMATIC
