Cartridge Type With Hand Knob
Pressure Switch > Micro Switch Sensor
MSC Cartridge Type With Hand Knob
█ MODEL CONFIGURATION
|
MSC |
- |
250 |
- |
B |
- |
M |
|
① |
② |
③ |
④ |
①: Series
②: Adjustment Range
|
Model |
Adjustment Range (bar) |
Max. Operating Pressure (bar) |
Standard Setting (bar) |
Weight (kg) |
|
40 |
8-40 |
80 |
20 |
1.1 |
|
70 |
10-70 |
150 |
30 |
1.1 |
|
100 |
15-100 |
150 |
50 |
1.1 |
|
150 |
20-150 |
250 |
70 |
1.1 |
|
250 |
40-250 |
400 |
100 |
1.1 |
|
360 |
50-260 |
400 |
200 |
1.1 |
③: Indicator
A: with LED indicator
B: without LED indicator
④: Thread Port
M: M22 x 1.5

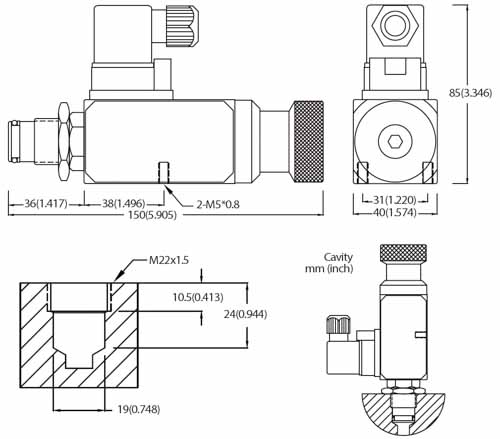

█ DIMENSIONAL DRAWING

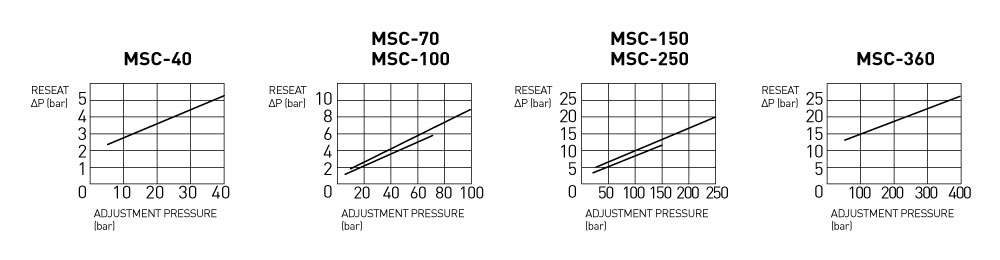

█ PERFORMANCE CURVES
█ SCHEMATIC CROSS-SECTION
█ CONNECTING SCHEMATIC
