AHP04
Hydraulic Filter > In-Line Filter > Low & High Pressure

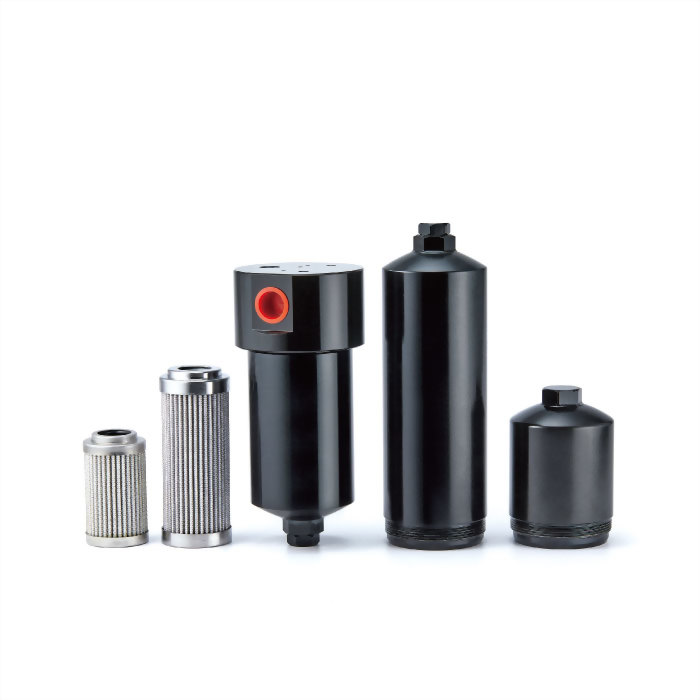

AHP04 Aluminum filter
AHP filters are used to protect individual valves or the hydraulic systems.
Two versions AHP03 and AHP04 are available with operating pressure at 105 bar (1500 psi) and flow rate up to 100 LPM (379 GPM).
They can be directly connected to the hydraulics system through the hydraulic fitting ports.
━Rating
Operating pressure : 105 bar (1500 psi)
Max. operating pressure : 140 bar (2000 psi)
Element ∆P : 210 bar
Flow Rate : 15-100 LPM
━Material of Construction
Head : Aluminum 6061-T6
Housing : Aluminum 6061-T6, forging press.
█ MODEL CONFIGURATION
|
AHP04 |
- |
2 |
- |
A03 |
- |
4 P |
- |
0 |
- |
N |
|
① |
② |
③ |
④ |
⑤ |
⑥ |
①: Series: Aluminum filter
②: Length, H
|
Code |
Length, H (mm) |
Weight (kg) *without element |
|
1 |
133 |
0.9 |
|
2 |
175 |
1.2 |
|
3 |
238 |
1.4 |
③Filtration Element
|
Code |
Flow rate (LPM) |
Filtration Rating |
||
|
Length 1 |
Length 2 |
Length 3 |
||
|
A03 |
15 |
20 |
30 |
Microfiber 3μm, β≧1000 |
|
A06 |
20 |
35 |
40 |
Microfiber 6μm, β≧1000 |
|
A10 |
35 |
50 |
60 |
Microfiber 10μm, β≧1000 |
|
A25 |
50 |
70 |
80 |
Microfiber 25μm, β≧1000 |
|
T40 |
75 |
90 |
100 |
Wire mesh 40μm |
* This table display a part of filter elements.
If other filtration rating is required, please contact factory.
④Thread Port
4: 1/2”
P: PT N: NPT G: BSP
⑤Indicator
0: None, with gage port 1/4” PT
⑥Seal
N: NBR V: Viton

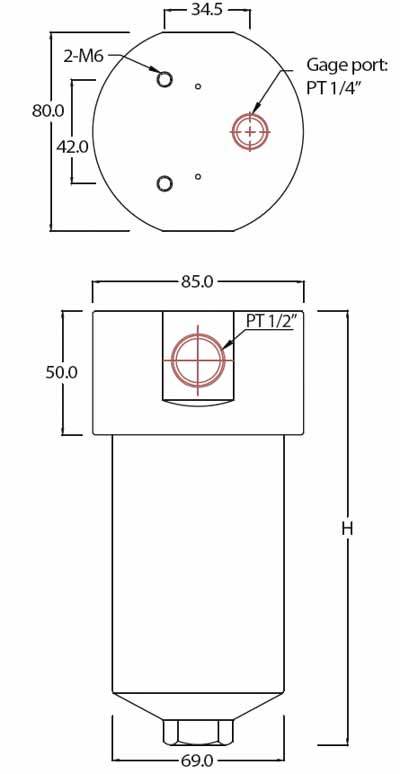

█ DIMENSIONAL DRAWING (mm)
