Hydraulic Filter > In-Line Filter > Low & High Pressure

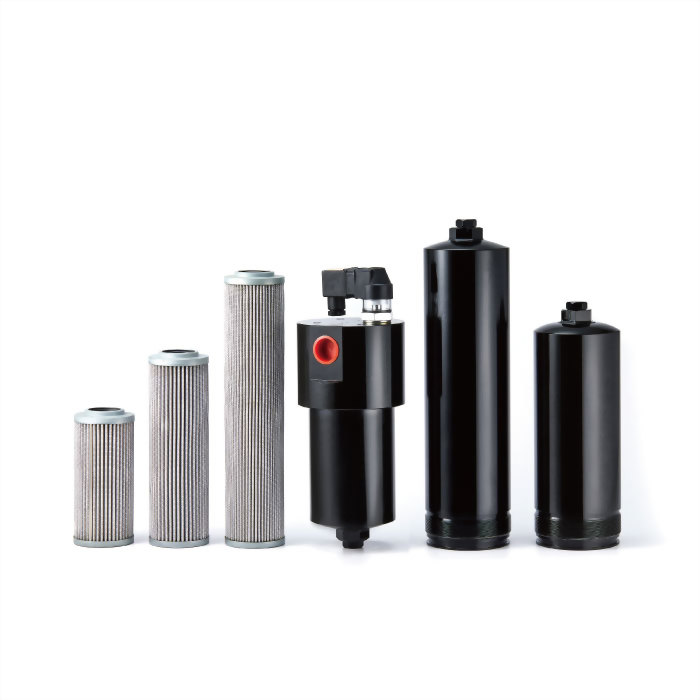

AHS08 Aluminum filter

AHS filters are used to protect individual valves or the hydraulic systems.

Three versions AHS06, AHS08 and AHS10 are available with operating pressure at 210 bar (3000 psi) and flow rate up to 600 LPM (2271 GPM).

They can be directly connected to the hydraulics system through the hydraulic fitting ports.

━Rating

Operating pressure         : 210 bar (3000 psi)

Max. operating pressure : 245 bar (3500 psi)

Element ∆P      : 210 bar

Flow Rate        : 70-170 LPM

━Material of Construction

Head        : Aluminum 6061-T6

Housing   : Aluminum 6061-T6, forging press.

█ MODEL CONFIGURATION

①: Series: Aluminum filter

②: Length, H

③Filtration Element

* This table display a part of filter elements.

If other filtration rating is required, please contact factory.

④Thread Port

6: 3/4”

P: PT       N: NPT   G: BSP

⑤Indicator

        0      : None, with plug

        BV   : Visual indicator

        BE   : Electrical/Visual indicator

Standard pressure setting at 3 or 4 bar, must be specified at time of order.

For indicator cavity and more details, see indicator page.

⑥Seal

        N: NBR   V: Viton

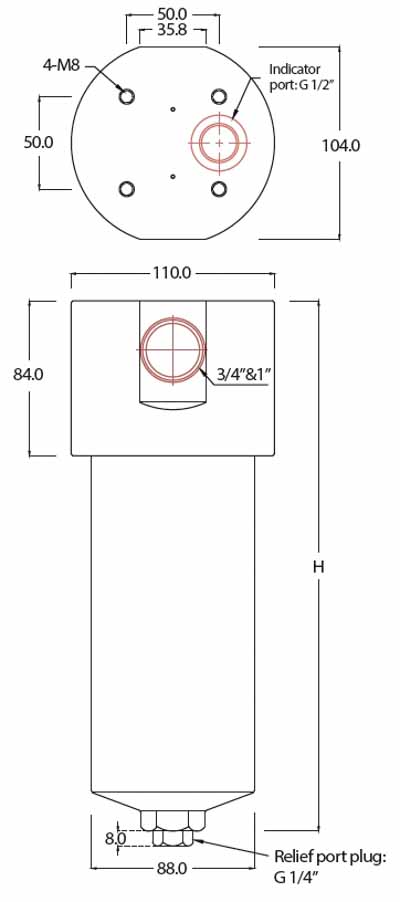

█ DIMENSIONAL DRAWING (mm)
