DSA
Pressure Switch > Proximity Sensor

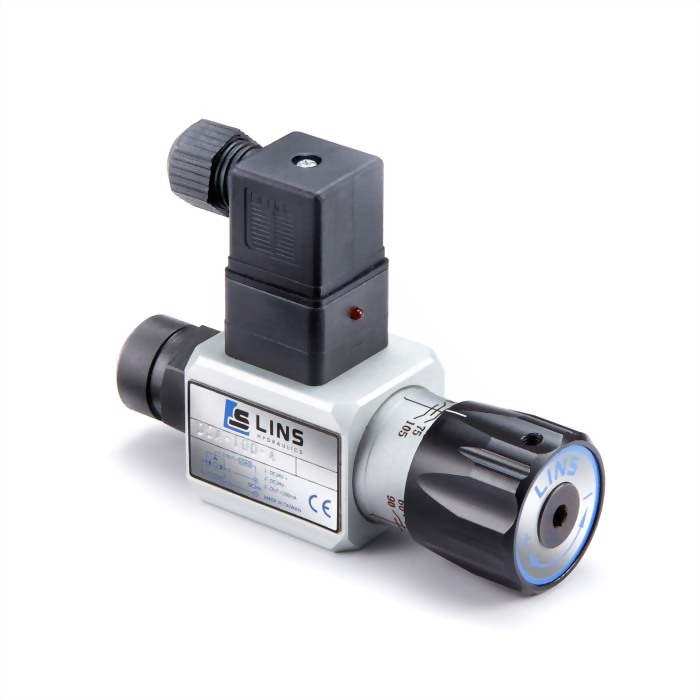

DSA NPN transistor with hand knob
█ MODEL CONFIGURATION
|
DSA |
- |
100 |
- |
A |
- |
P |
|
① |
② |
③ |
④ |
①: Series
②: Adjustment Range
|
Model |
Adjustment Range, bar |
Max. Operating Pressure, bar |
Standard Setting, bar |
Weight, kg |
|
50 |
6-50 |
200 |
25 |
0.8 |
|
100 |
15-100 |
300 |
45 |
0.8 |
|
200 |
30-200 |
300 |
100 |
0.8 |
|
280 |
40-280 |
350 |
110 |
0.8 |
|
400 |
50-400 |
400 |
180 |
0.8 |
③: Indicator
A: with LED indicator
④: Thread Port
P: 1/4” PT
█ DIMENSIONAL DRAWING

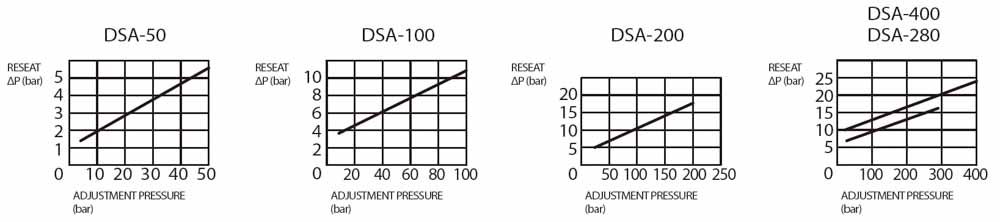

█ PERFORMANCE CURVES

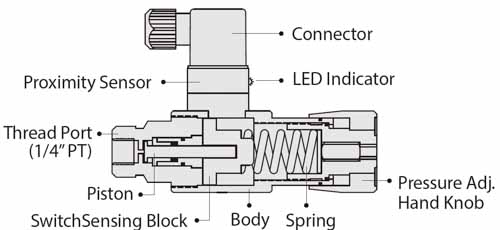

█ SCHEMATIC CROSS-SECTION
█ CONNECTING SCHEMATIC
Rating:
A:24VDC, 0.1A
N.O.: Normally Open
N.C.: Normally Close
Lift time: 80,000,000
