DSB
Pressure Switch > Proximity Sensor

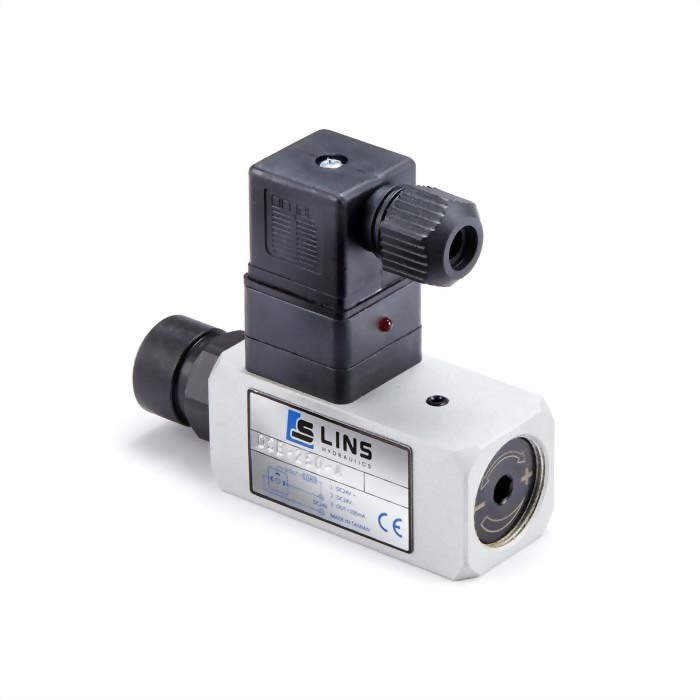

DSB NPN transistor without hand knob
█ MODEL CONFIGURATION
|
DSB |
- |
250 |
- |
A |
- |
P |
|
① |
② |
③ |
④ |
①: Series
②: Adjustment Range
|
Model |
Adjustment Range, bar |
Max. Operating Pressure, bar |
Standard Setting, bar |
Weight, kg |
|
40 |
6-40 |
150 |
20 |
0.6 |
|
70 |
10-70 |
150 |
30 |
0.6 |
|
150 |
20-150 |
250 |
70 |
0.6 |
|
250 |
40-250 |
250 |
100 |
0.6 |
③: Indicator
A: with LED indicator
④: Thread Port
P: 1/4” PT
█ DIMENSIONAL DRAWING
█ PERFORMANCE CURVES
█ SCHEMATIC CROSS-SECTION

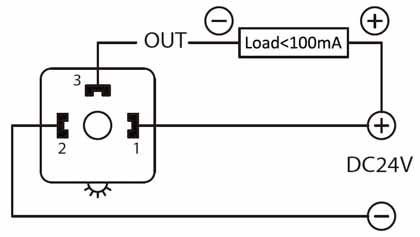

█ CONNECTING SCHEMATIC
Rating:
A:24VDC, 0.1A
N.O.: Normally Open
N.C.: Normally Close
Lift time: 80,000,000
