SHS08

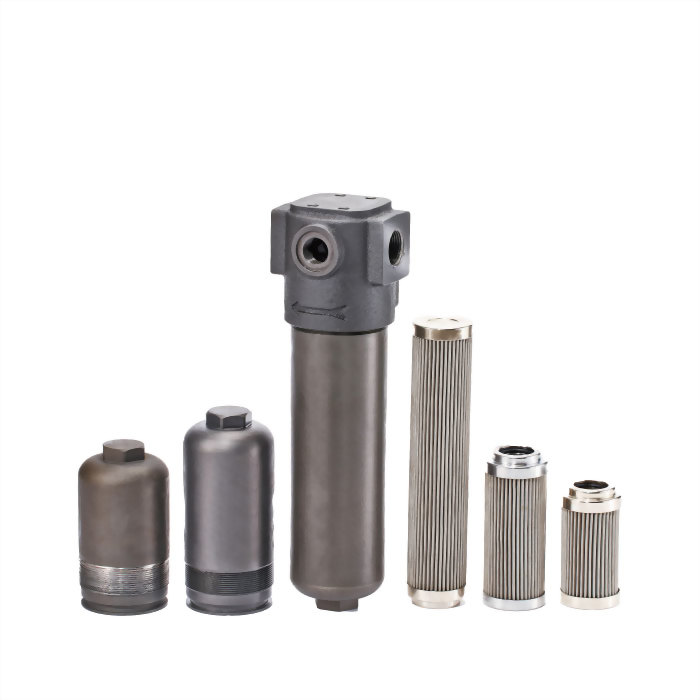

SHS Filters are used to protect individual valves or the hydraulic systems.

Three versions SHS06, SHS08 and SHS10 are available with operating pressure at 280 bar (4000psi) and flow rate up to 600 LPM (158 GPM).

They can be directly connected to the hydraulics system through the hydraulic fitting ports.

━Rating

Operating pressure         : 280 bar (4000 psi)

Max. operating pressure : 350 bar (5000 psi)

Element ∆P      : 210 bar

Flow Rate        : 35-200 LPM

━Material of Construction

Head        : Steel

Housing   : Steel

█ MODEL CONFIGURATION

①: Series: Steel filter

②: Length, H

③: Filtration Element

* This table display a part of filter elements.

If other filtration rating is required, please contact factory.

④: Thread Port

6: 3/4”           8: 1”

P: PT             N: NPT           G: BSP

⑤: Indicator

        0      : None, with plug

        BV   : Visual indicator

        BE   : Electrical/Visual indicator

Standard pressure setting at 3 or 4 bar, must be specified at time of order.

For indicator cavity and more details, see indicator page.

⑥: Seal

        N: NBR   V: Viton

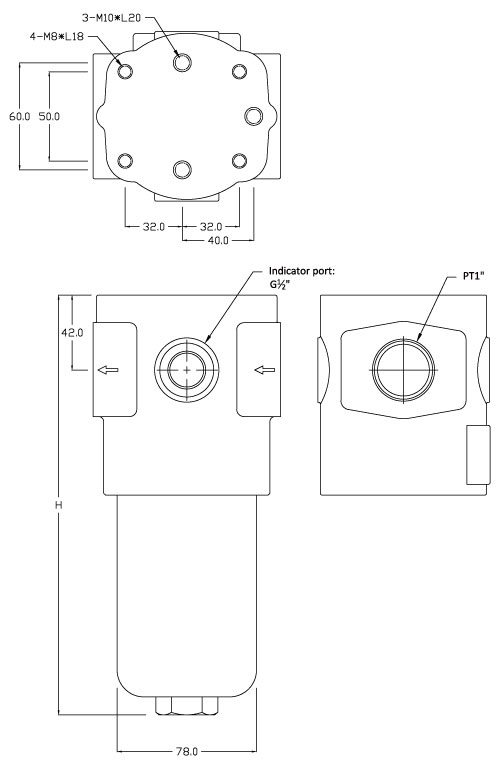

█ DIMENSIONAL DRAWING (mm)

█ SYMBOL
