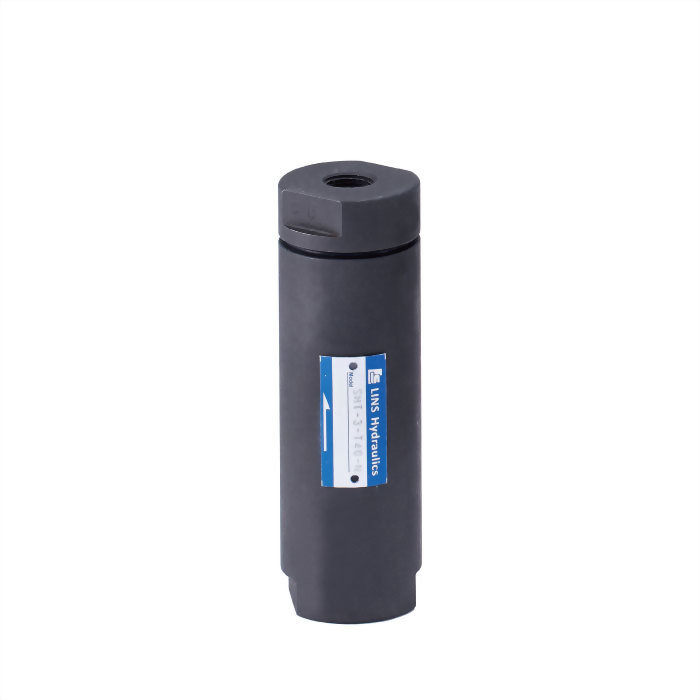

SHT03 Steel In-Line Filter

LINS SHT filter are used to protect individual valves or the hydraulics systems. This SHT03 is an in-line filter that can be directly mounted into the hydraulic circuit manifold or the out port of a hydraulic pump.

● Compact size design.

● Easy configuration.

━Rating

Operating pressure: 280 bar (4000 psi)

Max. operating pressure : 350 bar (5000 psi)

Element ∆P      : 210 bar

Flow Rate        : 3.5-15 LPM

━Material of construction

Head: Steel

Housing: Steel

█ MODEL CONFIGURATION

①: Series: Steel in-line filter

②: Length

③: Filtration Element

* This table display a part of filter elements.

If other filtration rating is required, please contact factory.

④: Seal

        N: NBR     V: Viton

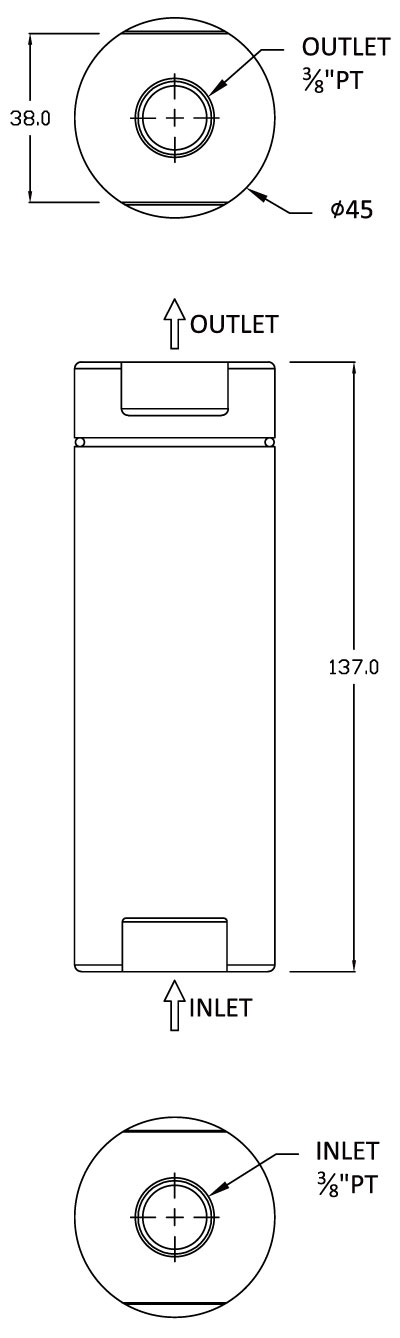

█ DIMENSIONAL DRAWING (mm)

█ SYMBOL
